Micro Couplers

Micro Couplers are used to join two segments of MicroDucts. Straight and Transition couplers are available. Multiple sizes available starting at 5 mm
Micro Couplers are used to join two segments of MicroDucts. Straight and Transition couplers are available. Multiple sizes available starting at 5 mm

Features

  • Easy assembly/disassembly, no tools required
  • Provide an air- and water-tight connection
  • Color coded by size
  • Tested to meet or exceed the stringent requirements of CENELEC EN 50411-2-8:2009 Standard for MicroDuct Connectors, for Air Blown Optical Fibers
  • Low profile design
  • Approved for use at 232PSI/16Bar
  • "HD" or "Heavy Duty" denotes enhanced pull-out and pressure characteristics
Ask your question
Micro Couplers

Technical Details

Select Coupler type

Straight
Straight
Transition
Description
5mm Straight Coupler 5/3.5mm (OD/ID)
Part #
20001462
Description
7mm Straight Coupler 7/5.5mm (OD/ID)
Part #
20001463
Description
8mm Straight Coupler 8/6mm (OD/ID)
Part #
20003948
Description
8.5mm Straight Coupler w/ Clip 8.5/6mm (OD/ID)
Part #
20005598
Description
12mm Straight Coupler 12/8mm (OD/ID)
Part #
20001833
Description
12.7mm Straight Coupler 12.7/10mm (OD/ID)
Part #
20001832
Description
14mm Straight Coupler w/ Clip 14/10mm (OD/ID)
Part #
20005599
Description
16mm Straight Coupler 16/13mm (OD/ID)
Part #
20005735
Description
18mm HD Straight Coupler 18/10mm (OD/ID)
Part #
20005217
Description
18mm Straight Coupler w/ Clip 18/14mm (OD/ID)
Part #
20005601
Description
22mm Straight Coupler 22/18mm (OD/ID)
Part #
20004910
Description
6mm Straight Coupler 6/3mm (OD/ID)
Part #
20004725
Description
7mm Straight Coupler w/ Clip 7/5.5mm (OD/ID)
Part #
20005718
Description
8.5mm Straight Coupler 8.5/6mm (OD/ID)
Part #
20001834
Description
10mm Straight Coupler 10/8mm (OD/ID)
Part #
20005123
Description
12mm Straight Coupler 12/10mm (OD/ID)
Part #
20005069
Description
14mm Straight Coupler 14/10mm (OD/ID)
Part #
20003430
Description

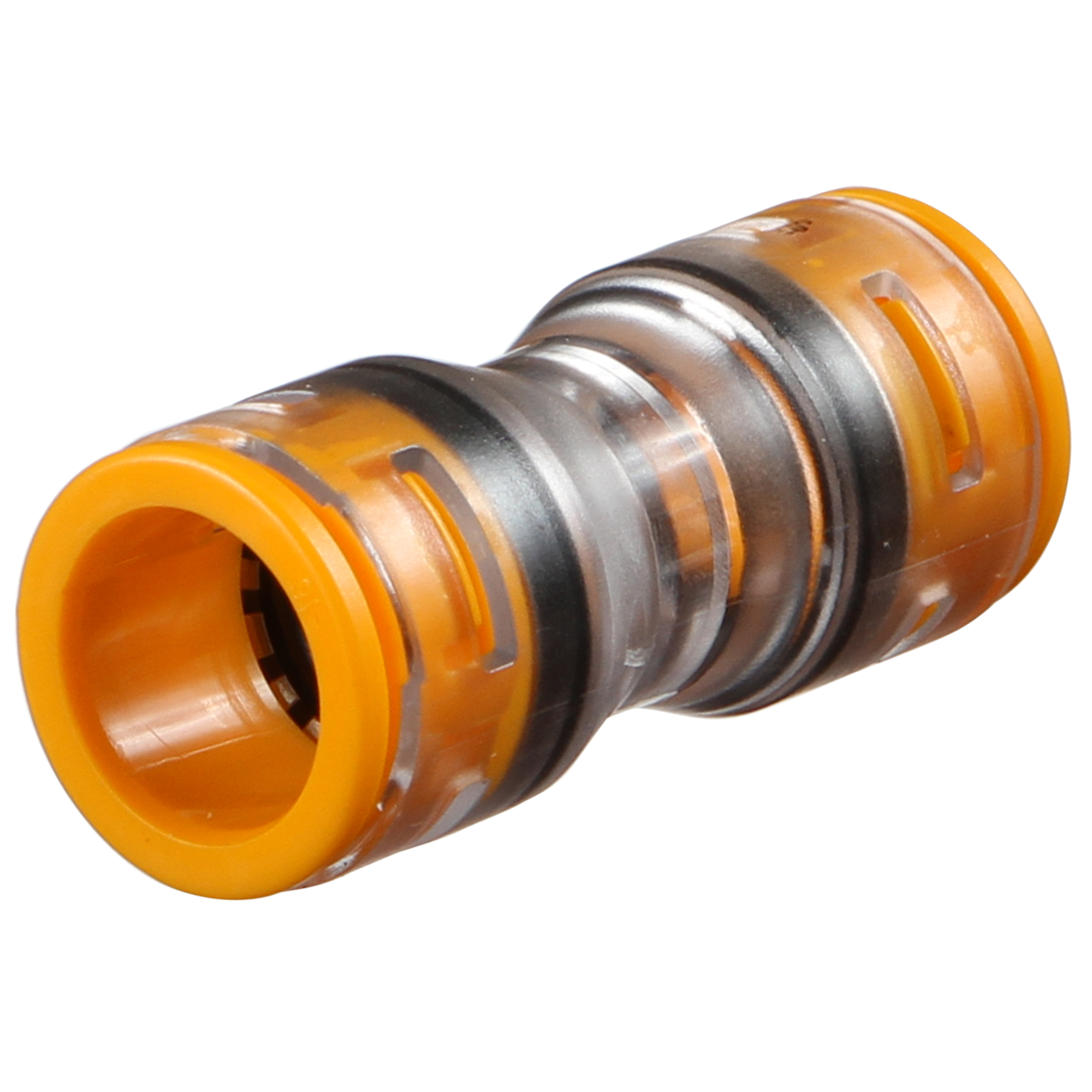

16mm Straight Coupler 16/12mm (OD/ID)
Part #
20001517
Description
16mm Straight Coupler w/ Clip 16/12mm (OD/ID)
Part #
20005600
Description
18mm Straight Coupler 18/14mm (OD/ID)
Part #
20001518
Description
22mm Straight Coupler 22/16mm (OD/ID)
Part #
20003137
Description
27mm Straight Coupler 27/20mm (OD/ID)
Part #
20005496
