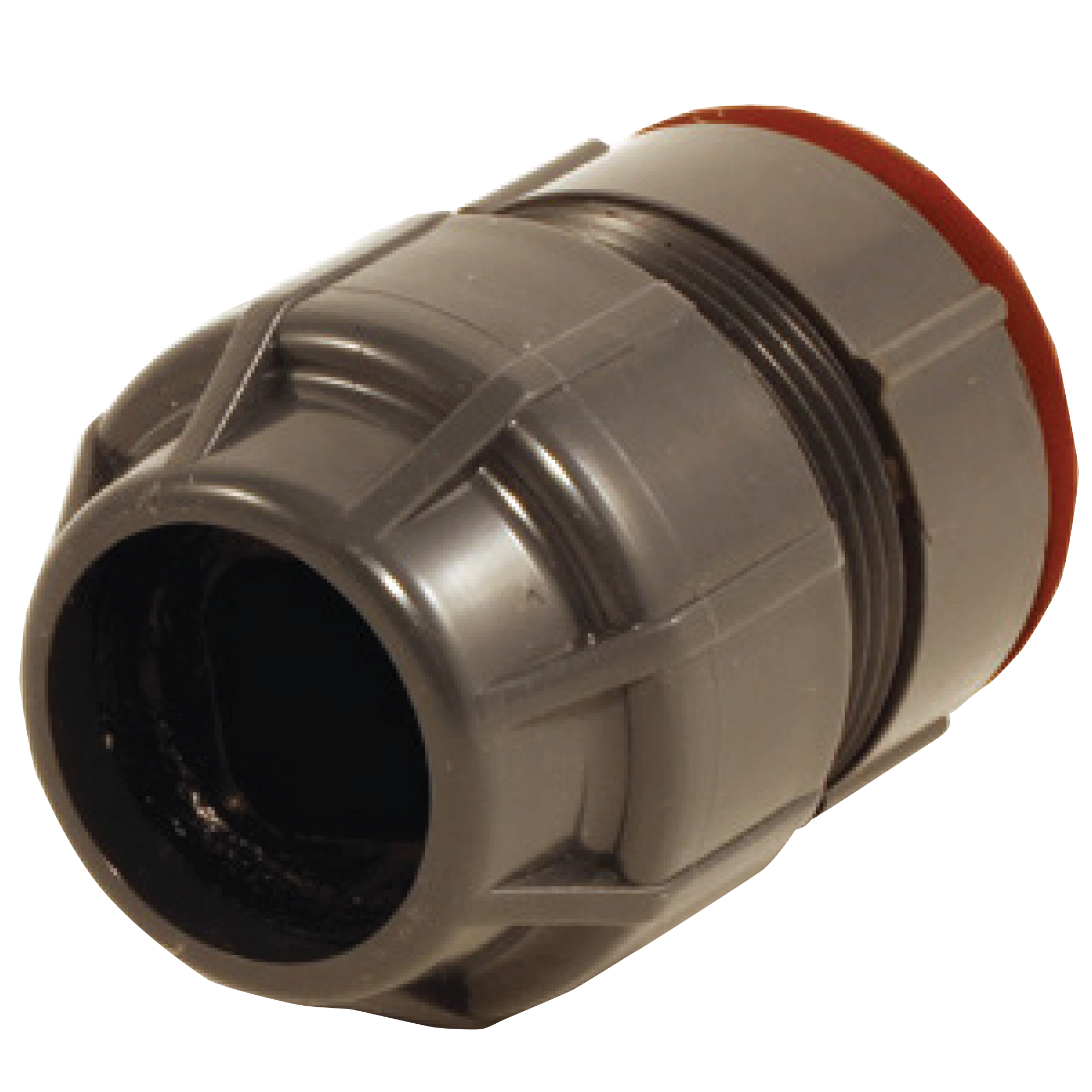

FuturePath Enclosure Connector

Micro Couplers are used to join two segments of MicroDucts. Straight and Transition couplers are available. Multiple sizes available starting at 5 mm

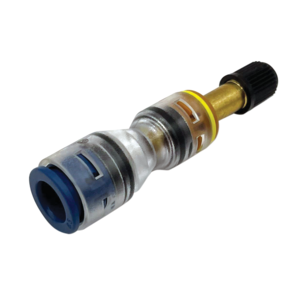

Seal the ends of your MicroDucts with Micro End Caps. Sizes available from 5mm to 27mm.

FuturePath Splice Kits provide all the necessary components to join segments of FuturePath. Kits include correct size of sleeve, couplers, sealant strips, vinyl tape and locate wire connector.

Using the correct tool for the job makes all the difference. Choose from a variety of cutters designed with a special purpose in mind - making the job go safely, smoothly, and quickly.

The MicroDuct organizer was designed to organize MicroDucts at termination. It’s small and compact, requiring a minimum amount of mounting space. The modular design allows ordering additional brackets as needed. When ordering the Mounting Plate, please note you will also need to order a Mounting Bracket to complete the first row.

Gas Block Connectors provide a simple and effective gas seal between the MicroDuct and the fiber cable to prevent gas, water, or moisture from entering the duct. The connector creates a seal around the installed cable.

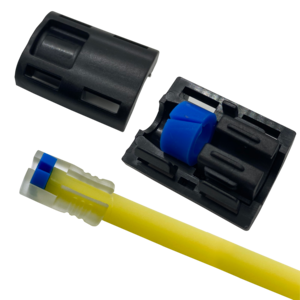

Divisible Duct Seals provide an air- and water-tight seal between the cable OD and the inner wall of the MicroDuct. The hard outer cover is divisible so it can be easily installed around an existing cable.

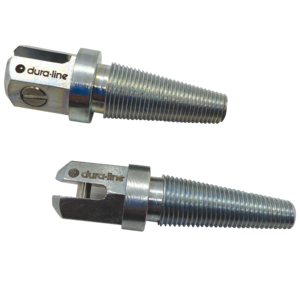

Made from Zinc coated Carbon steel, MicroDuct Pulling Eyes facilitate the quick placement of MicroDucts. The hex head design allows for faster and safer installation and removal from the duct. The Pulling Harnesses can accommodate up to 4 Micro Pulling Eyes at a time and have staggered eyelets every 4 inches.

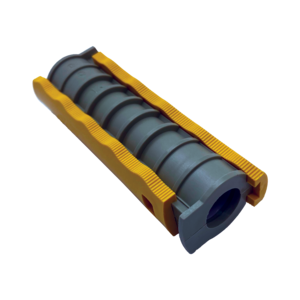

Excellent for use in repair scenarios or at jetting heads, the MicroDuct Split Coupler provides a high quality, air- and water-tight seal. The divisible halves allow for installation around pre-installed cables.

eABF cables are designed by AFL to offer the most rugged and reliable enterprise-based blown fiber solution in the market today. The patent pending cable design combines a light-weight, low-drag jacketing system that allows the cable to be blown long distances. The cable series also features additional attributes that set this product above and beyond traditional blown fiber cables. These enhanced features include mechanical strengthening that permits the cable to comply with industry-standard premise interconnect specifications. In addition, the eABF cable series feature flame-resistance characteristics which result in stand-alone riser and plenum rated options suitable for routing outside of the micro-duct system. Because of these mechanical, environmental and optical qualifications, eABF cables can also be installed in third-party, flame-rated duct and pathway systems.

The MicroDuct Distribution Box or MDB is a convenient indoor junction box where multiple MicroDucts can be joined together. The box is used in conjunction with FuturePath Enclosure Connectors.

Low-profile and made from Dual Polymer and Kevlar construction, the mesh Pulling Grip is an extremely strong, yet convenient means of pulling various sizes of MicroDucts or cables.
