PowerGuard® Plus

PowerGuard® Plus

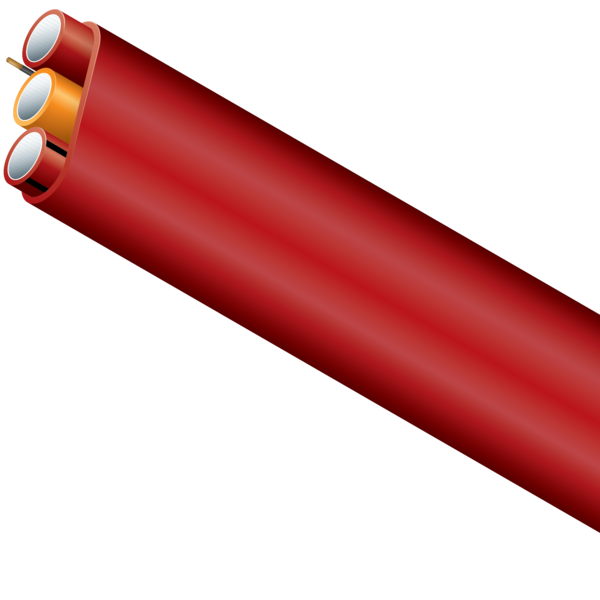

Available in a 3-way configuration, the center conduit (orange) provides the required 27 mm (1") separation between the two Power conduits. PowerGuard® Plus is part of our newest line of conduit products complete with a smooth outer wall, longitudinal inner ribs, and SuperSilicore® inner lining for reduced coefficient of friction.

Features

  • Available in a 3-way configuration of 27mm (1") SCH 40 HDPE conduit bundled with a polyethylene oversheath
  • Red conduit: Power, Orange conduit: All-Dielectric Fibre Optic Cable, Red with Black Stripe conduit: Power. The center conduit (orange) provides the required 27 mm (1") separation between the two Power conduits.
  • Manufactured from flexible CSA listed and standard HDPE resin, makes gradual bends without special equipment or added accessories
  • Internal longitudinal ribbing reduces friction during cable placement
  • SuperSilicore® inner wall eliminates the need for wet lubricants during cable pulling
  • Excellent low temperature properties allow installation in cold climates
  • Outstanding long term cable protection from shifting ground, rock, and root impingement
  • Multiple pathways for electrical and fibre for one installation cost, allows flexibility and future growth
  • Greatly reduces the number of coupled joints in a continuous installation, reducing the possibility of infiltration of native soil, backfill and water
  • Available with pre-installed pull tape from 500lb to 6000lb tensile strength
  • Available with pre-installed 20 awg insulated tracer wire

Details

  • Footage/Meter Markings
  • Internal Ribs
  • Silicore®
PowerGuard® Plus

Colors

Orange
Orange
Red
Red

Options

SuperSilicore®
Internal Ribs
Preinstalled Tape
Preinstalled Cable
Color Stripes
Locate Wire

Applications
