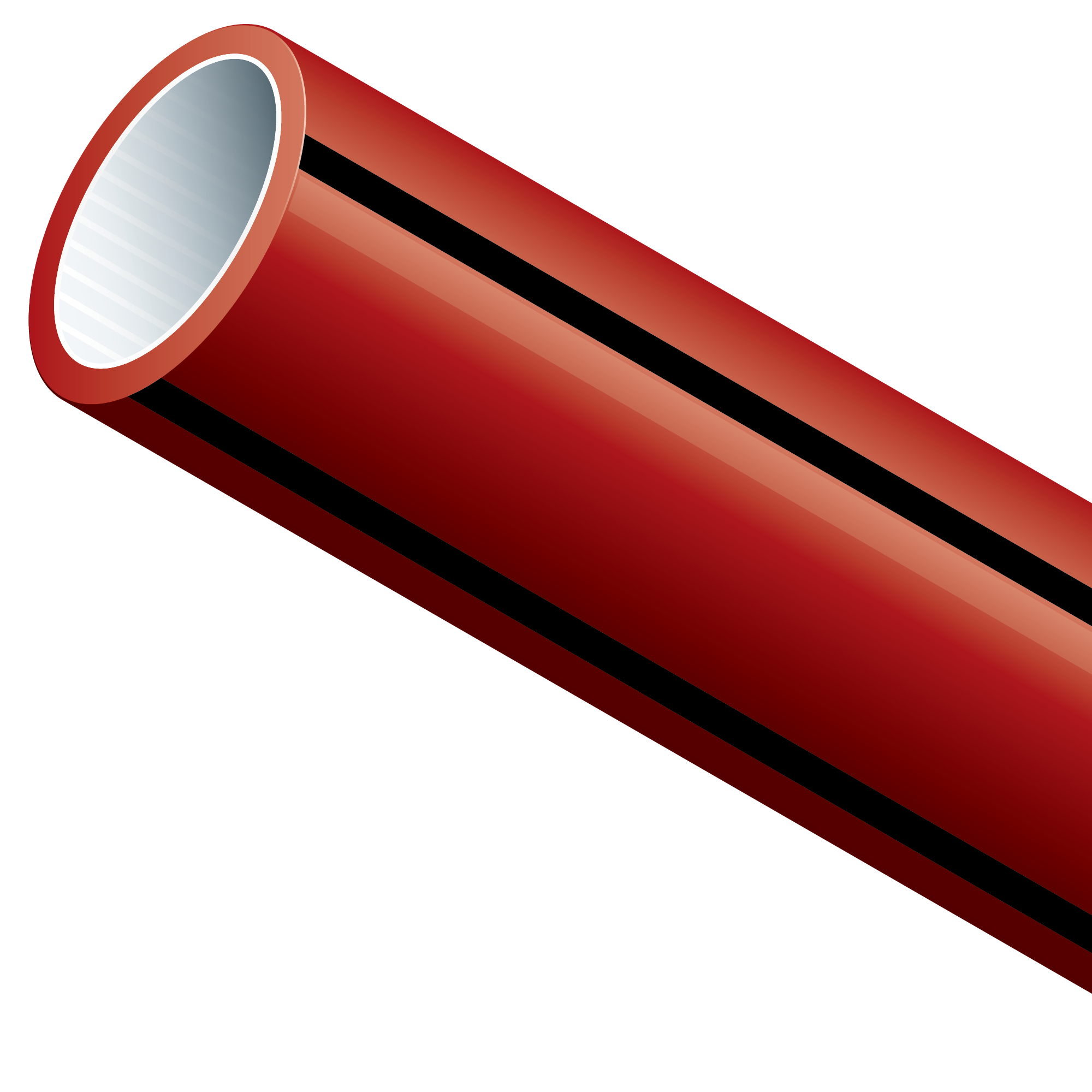

PowerGuard®
PowerGuard® is our newest line of conduit products complete with a smooth outer wall, longitudinal inner ribs, and SILICORE® ULF inner lining for reduced coefficient of friction. Listed to the CSA C22.2 #327-18 electrical standard as well as the Canadian Electrical Code this product is ideal for all buried cables up to and including 69kv.
Features
- Available in 16mm (1⁄2") to 129mm (5"). Comes standard in long continuous lengths on reels or coils, 155mm (6") is available in trade lengths 3.048m (10’), 6.096m (20’), 12.192m (40’), & 15.24m (50’)
- Manufactured from flexible CSA listed HDPE resin, makes gradual bends without special equipment or added accessories
- Internal longitudinal ribbing reduces friction during cable placement
- SILICORE® ULF inner wall eliminates the need for wet lubricants during cable pulling
- Excellent low temperature properties allow installation in cold climates
- Outstanding long term power cable protection from shifting ground, rock, and root impingement
- Provides a permanent pathway, simplifies future cable repairs or replacement
- Greatly reduces the number of coupled joints in a continuous installation, reducing the possibility of infiltration of native soil, backfill and water
- Available with pre-installed pull tape from 500# to 6000# strength
- Standard configuration – Red, 4 black stripes, longitudinal ribbing and SILICORE® ULF
Details
- Footage/Meter Markings
- Internal Ribs
- Silicore® ULF
Specifications and Shipping Info
Choose Conduit Size, Wall Type, and Wall Ratio
Nominal Size
Wall Type
Wall Ratio
Downloads
Technical Data Sheet
Colors
Red
Gray
Black
Orange
Installations
Applications
- DOTGvmtMilitary
- Long Haul
- Smart Cities
- Electrical
