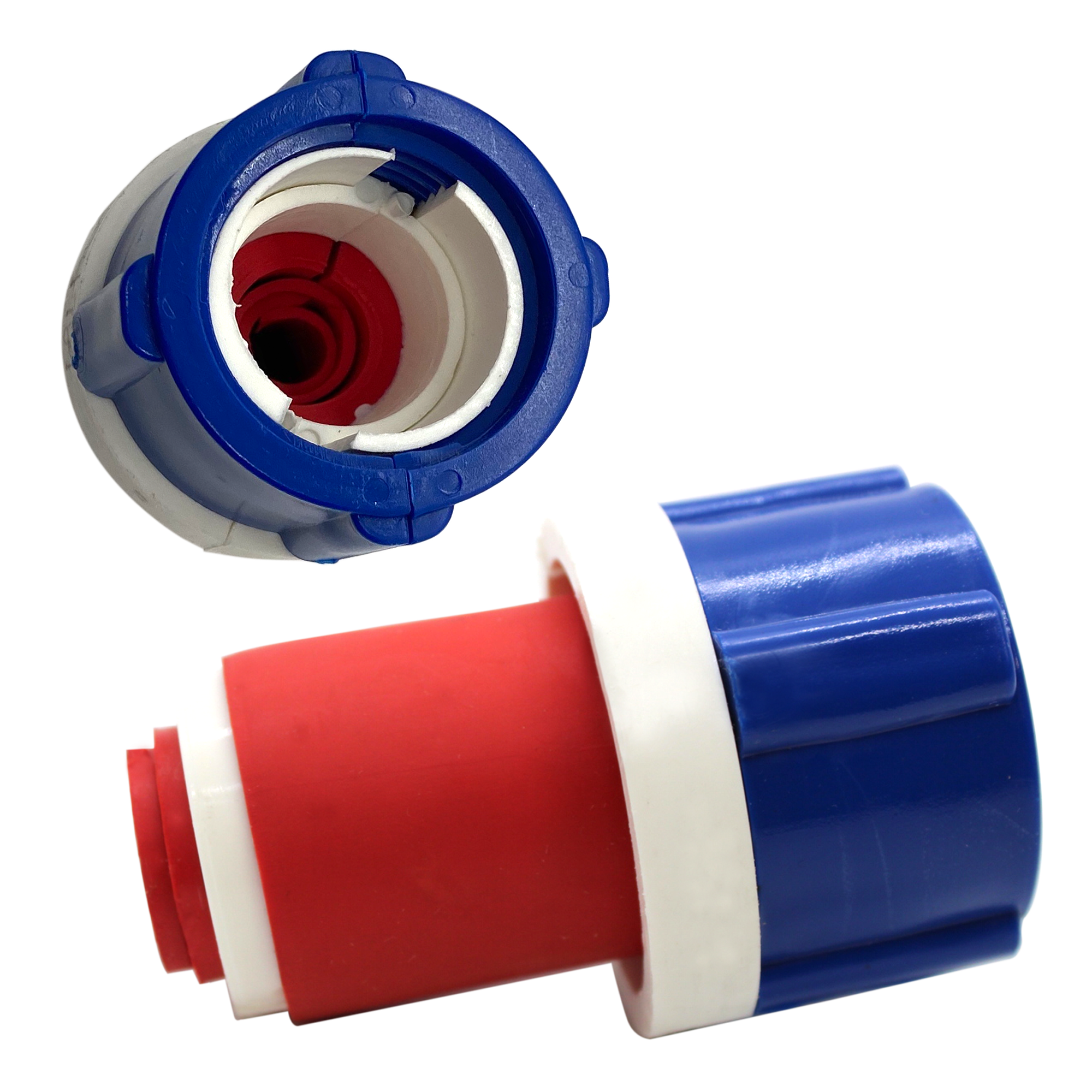

Simplex Plugs

Simplex Plugs effectively seal conduits containing one cable by sealing the space between the duct and cable.
Simplex Plugs effectively seal conduits containing one cable by sealing the space between the duct and cable.

Features

  • Re-usable and removable
  • Able to install around existing cables with no special tools needed
  • Air- and water-resistant
  • Corrosion proof
  • Prevents dirt and dust from entering conduit
  • 1.00” plug fits a Conduit ID of 1.05”-1.13”
  • 1.25” plug fits a Conduit ID of 1.28”-1.36”
  • 1.50” plug fits a Conduit ID of 1.46”-1.56”
  • 2.00” plug fits a Conduit ID of 1.92”-2.06”
  • Available in a variety of cable OD ranges
Ask your question
Simplex Plugs

Product Information

Part # Description Packaging
20005356 1.00" Simplex Plug cable OD 0.27" - 0.35" Each
20005357 1.00" Simplex Plug cable OD 0.35" - 0.57" Each
20005358 1.00" Simplex Plug cable OD 0.51" - 0.71" Each
20005297 1.25" Simplex Plug cable OD 0.35" - 0.57" Each
20005298 1.25" Simplex Plug cable OD 0.51" - 0.71" Each
20005299 1.25" Simplex Plug cable OD 0.71" - 0.84" Each
20005359 1.50" Simplex Plug cable OD 0.08" - 0.35" Each
20005360 1.50" Simplex Plug cable OD 0.35" - 0.57" Each
20005361 1.50" Simplex Plug cable OD 0.51" - 0.71" Each
20093569 2.00" Simplex Plug cable OD 0.08" - 0.14" Each
20004994 2.00" Simplex Plug cable OD 0.15" - 0.24" Each
20004996 2.00" Simplex Plug cable OD 0.25" - 0.51" Each
20004995 2.00" Simplex Plug cable OD 0.52" - 0.75" Each
20005084 2.00" Simplex Plug cable OD 0.76" - 1.00" Each

Downloads

Specifications
DL_Simplex Plug_6.23
