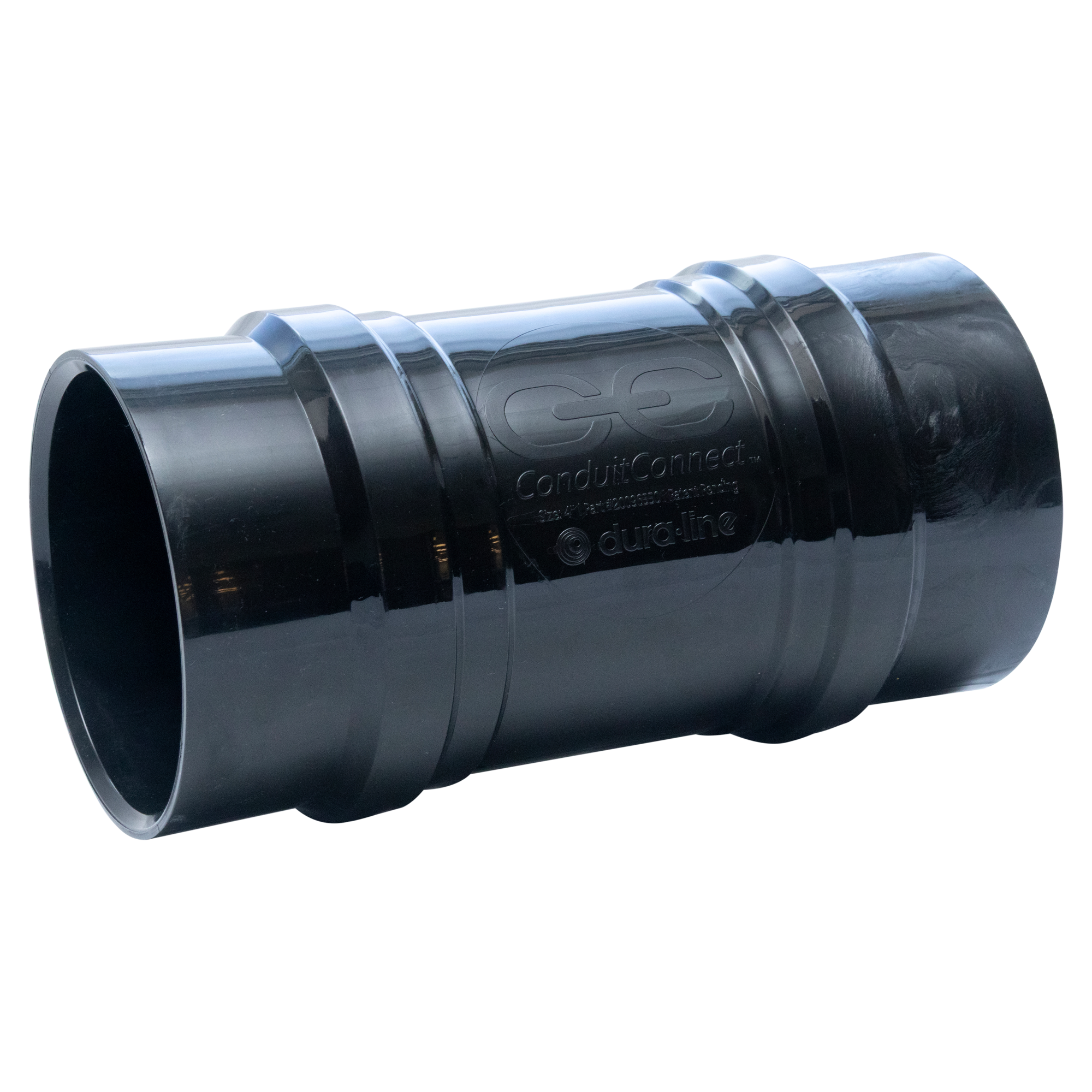

Conduit Connect

The latest in Dura-Line's coupler collection, the Conduit Connect is specifically designed to meet the rigorous demands of duct bank installations and your go-to solution for a wide range of electrical and telecom applications. Whether you're working with HDPE or PVC sticks or continuous length reeled products, this coupler delivers a secure, reliable connection every time.
The latest in Dura-Line's coupler collection, the Conduit Connect is specifically designed to meet the rigorous demands of duct bank installations and your go-to solution for a wide range of electrical and telecom applications. Whether you're working with HDPE or PVC sticks or continuous length reeled products, this coupler delivers a secure, reliable connection every time.

Features

  • Ideal for joining lengths of HDPE or PVC sticks but can also be used with continuous length, reeled products.
  • Air- and water-tight with a pre-lubricated gasket for easy installation
  • High strength HDPE body is ideal for buried duct applications
  • UV resistant
  • Superior pull-out strength
  • Specialized for use by electrical installers requiring ETL/UL certification
  • Patent pending
  • Additional sizes coming soon
Ask your question
Conduit Connect

Technical Specifications

Part # Description Nominal OD (in.) Height (in) OD Working Range (in) Pull Out Strength (lb) Packaging
20097517 3" Conduit Connect 3.5 8.25 3.480-3.520 1000 Each
20096550 4" Conduit Connect 4.5 10 4.480-4.520 1000 Each
20096882 6" Conduit Connect 6.625 13 6.605-6.645 1000 Each

Downloads

Specifications
DL_Conduit Connect Coupler TDS 9.25
